| CATALOG NUMBER |
XCI3278221-00000 |
| Manufacturer |
Eaton Moeller |
| Product Name |
Eaton Green Motion Home EV charging station |
| Catalog Number |
XCI3278221-00000 |
| Model Code |
GMH V2 3.7-22 kW Socket T2 On-Line |
| EAN |
3553340301056 |
| Product Length/Depth |
116 mm |
| Product Height |
291 mm |
| Product Width |
263 mm |
| Product Weight |
3 kg |
| Compliances |
CE Marked |

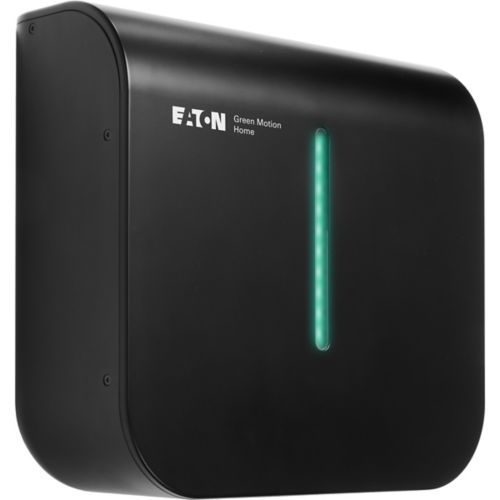

EATON XCI3278221-00000 GMH V2 3.7-22 kW Socket T2 On-Line - Product Page
1. Product Name
EATON XCI3278221-00000 GMH V2 3.7-22 kW Socket T2 On-Line EV Charger
2. Product Introduction
The EATON XCI3278221-00000 GMH V2 is a versatile on-line electric vehicle (EV) charger, supporting 3.7-22 kW adjustable power output and equipped with a Type 2 (T2) socket. Designed for private and semi-public use, it meets IEC 61851-1 standards, features IP54/IK08 protection, and suits indoor/outdoor installation in homes, villas, and small commercial parking lots.
3. Product Description
The EATON XCI3278221-00000 GMH V2 3.7-22 kW Socket T2 On-Line represents a refined solution for residential and semi-public EV charging, embodying EATON’s expertise in electrical safety, sustainability, and user-centric design. As part of EATON’s Green Motion Home (GMH) product line—tailored for private vehicle owners and small-scale commercial users—this on-line charger addresses the core needs of modern EV drivers: flexibility, reliability, and seamless integration with daily life.
At its core, the charger delivers an adjustable power output range of 3.7 kW to 22 kW, a key feature that adapts to diverse charging scenarios and electrical infrastructure. The 3.7 kW setting is ideal for overnight charging in residential areas, where single-phase electrical systems (230V) are common: a typical EV with a 50 kWh battery can be fully charged in 13-14 hours, perfectly aligning with overnight parking schedules. For users with three-phase electrical systems (400V), the 22 kW high-power mode enables fast charging—adding approximately 80-100 km of range in just one hour, suitable for quick top-ups before daily commutes or weekend trips. This dual-compatibility with single-phase and three-phase power grids eliminates the need for separate chargers, making it a future-proof investment as users may upgrade their electrical systems or switch to EVs with larger batteries.
The charger is equipped with a Type 2 (T2) socket, the global standard for AC EV charging, ensuring compatibility with nearly all modern EV models—from compact passenger cars (e.g., Volkswagen ID.3, BMW i3) to small electric SUVs (e.g., Hyundai Kona Electric). Unlike chargers with fixed cables, the socket design allows users to use their vehicle’s original charging cable or a universal T2 cable, offering greater flexibility for multi-vehicle households or semi-public use (e.g., a small office with employees driving different EV brands). The socket also features a safety lock mechanism to prevent accidental disconnection during charging, reducing the risk of arcing or electrical hazards.
Constructed with durability and versatility in mind, the EATON XCI3278221-00000 GMH V2 boasts an impressive protection rating of IP54 (ingress protection) and IK08 (impact resistance). The IP54 rating shields internal components from dust ingress and water splashes, making it suitable for both indoor installation (e.g., garage walls) and outdoor use (e.g., driveway mounting, covered parking bays). The IK08 rating ensures resistance to mechanical impacts—such as accidental bumps from gardening equipment or vehicle doors—extending the charger’s service life in high-traffic residential areas. The enclosure is made of high-grade plastic, lightweight yet robust, with a compact footprint (116mm depth × 263mm width × 291mm height) and 3kg weight, enabling easy wall or floor mounting via the included drilling template and quickstart guide.
As an “on-line” charger, the EATON XCI3278221-00000 GMH V2 integrates advanced connectivity and smart management features. It supports the Open Charge Point Protocol (OCPP) 1.6, the industry standard for EV charger communication, allowing integration with EATON’s dedicated mobile app and cloud-based management platform. Through the app, users can remotely start/stop charging sessions, monitor real-time energy consumption (via a built-in energy meter), and set charging schedules—for example, programming the charger to operate during off-peak electricity hours (e.g., 10 PM to 6 AM) to reduce energy costs. For semi-public users (e.g., small businesses), the app also enables access control via RFID cards or mobile authentication, ensuring only authorized users (e.g., employees, residents) can utilize the charger.
Safety is a paramount design principle of the EATON XCI3278221-00000 GMH V2. It complies with international safety standards, including IEC 61851-1 (EV charging system safety) and CE marking, and incorporates multiple protective mechanisms:
- Overcurrent/overvoltage protection: Instantly shuts down charging if current or voltage exceeds safe limits, preventing damage to the EV battery or charger.
- Ground fault detection: Detects leakage currents and cuts power within milliseconds, reducing the risk of electric shock.
- Thermal management: Built-in heat sinks and temperature sensors prevent overheating, with an operating temperature range of -25°C to 45°C—ensuring performance in freezing winters and hot summers.
- Short-circuit protection: Safeguards against electrical faults caused by damaged cables or connectors.
These features make the charger safe for use in residential settings, where users may have limited electrical expertise, and ensure compliance with strict regional safety regulations.
In line with EATON’s sustainability goals, the XCI3278221-00000 GMH V2 is engineered for high energy efficiency—with a charging efficiency rating of up to 96%. This means only 4% of energy is lost as heat during charging, reducing both operational costs and environmental impact. The charger is also compatible with renewable energy systems, such as residential solar PV arrays: users can prioritize charging with solar-generated electricity, further lowering their carbon footprint and aligning with global decarbonization efforts.
The package contents include all essential components for quick installation: the charger unit, a quickstart guide, safety guidelines, and a drilling template. This user-friendly setup allows professional electricians to complete installation in under two hours, minimizing disruption to daily life. For maintenance, the charger’s modular design enables easy replacement of individual components (e.g., communication modules, power units), reducing downtime and repair costs.
Whether deployed in a private home, a villa’s driveway, or a small office parking lot, the EATON XCI3278221-00000 GMH V2 3.7-22 kW Socket T2 On-Line delivers consistent, safe, and smart charging performance. It bridges the gap between residential convenience and commercial-grade reliability, making it a trusted choice for EV owners and small-scale operators seeking a flexible, long-lasting charging solution.
4. Product Advantages
The EATON XCI3278221-00000 GMH V2 3.7-22 kW Socket T2 On-Line stands out in the residential and semi-public EV charging market with a range of advantages that prioritize flexibility, safety, durability, and user convenience—addressing the unique needs of private EV owners and small-scale commercial users.
Adjustable Power Output for Versatile Charging
A primary advantage of the EATON XCI3278221-00000 GMH V2 is its 3.7-22 kW adjustable power range, which adapts to both single-phase and three-phase electrical systems. For residential users with single-phase 230V grids, the 3.7 kW setting enables slow, overnight charging—perfect for daily commuters who park their EVs for 8-10 hours while sleeping. For users with three-phase 400V systems (e.g., villas, small businesses), the 22 kW fast-charging mode delivers rapid top-ups: a 50 kWh battery can be charged from 20% to 80% in just 1.5 hours, ideal for last-minute trips or multi-vehicle households. This flexibility eliminates the need to upgrade to a new charger if the user switches to a larger EV battery or upgrades their home’s electrical system, making it a cost-effective, future-proof investment.
Universal T2 Socket Compatibility
The charger’s Type 2 (T2) socket is a significant advantage, as it is the global standard for AC EV charging. This compatibility ensures the charger works with nearly all modern EVs, including models from Tesla (with an adapter), Nissan, Ford, and Mercedes-Benz—critical for multi-vehicle households or semi-public use (e.g., a small office with diverse employee EVs). Unlike fixed-cable chargers, which may become obsolete if a user switches to an EV with a different connector, the T2 socket design remains relevant as EV technology evolves. Additionally, the socket allows users to reuse their vehicle’s original cable, reducing waste and saving the cost of purchasing a new cable.
Robust IP54/IK08 Protection for All Environments
The EATON XCI3278221-00000 GMH V2’s IP54 ingress protection and IK08 impact resistance make it one of the most durable residential chargers on the market. The IP54 rating protects against dust and water splashes, enabling outdoor installation in driveways, gardens, or uncovered parking bays—eliminating the need for expensive weatherproof enclosures. The IK08 rating ensures the charger can withstand accidental impacts (e.g., a bicycle collision, a falling tool) without damage, making it suitable for busy residential areas with children or pets. This durability translates to a longer service life (typically 10+ years) and lower maintenance costs, as the charger requires minimal repairs even in harsh conditions.
Smart Connectivity and Remote Management
As an on-line charger, the EATON XCI3278221-00000 GMH V2 offers advanced connectivity via OCPP 1.6 and a dedicated mobile app, enhancing user convenience and energy efficiency. Through the app, users can remotely monitor charging status (e.g., “Charging,” “Complete,” “Error”), track energy consumption (to calculate monthly charging costs), and set scheduled charging. For example, a user can program the charger to run only during off-peak hours (when electricity rates are 30-50% lower), reducing annual energy bills by hundreds of dollars. The app also sends real-time alerts (e.g., “Charging complete,” “Fault detected”), ensuring users stay informed without checking the charger in person. For semi-public users, the app enables access control: a small business owner can issue RFID cards to employees, restricting charger use to authorized personnel and preventing misuse.
Comprehensive Safety Features
Safety is a standout advantage of the EATON XCI3278221-00000 GMH V2, with a suite of features that protect users, vehicles, and the electrical grid. Key safety mechanisms include:
- Overcurrent/overvoltage protection: Prevents damage to the EV battery and charger by shutting down power if current/voltage spikes occur (e.g., due to grid fluctuations).
- Ground fault detection: Instantly cuts power if a leakage current is detected, reducing the risk of electric shock—critical for outdoor use where water or moisture may be present.
- Thermal shutdown: Activates if the charger’s internal temperature exceeds 45°C, preventing overheating and component failure.
- Safety-locked T2 socket: Prevents accidental disconnection during charging, avoiding arcing and electrical hazards.
These features comply with global safety standards (IEC 61851-1, CE) and provide peace of mind for users, especially families with children or elderly members.
Compact Design and Easy Installation
The EATON XCI3278221-00000 GMH V2’s compact size (116mm × 263mm × 291mm) and lightweight (3kg) make it easy to install in tight spaces—such as narrow garage walls or small driveways. The included drilling template and quickstart guide simplify installation for professional electricians, who can complete the process in under two hours. The charger supports both wall and floor mounting, offering flexibility for different residential layouts: wall mounting saves floor space in garages, while floor mounting is ideal for driveways without nearby walls. This ease of installation reduces labor costs and minimizes disruption to the user’s daily routine.
5. Application Scenarios
The EATON XCI3278221-00000 GMH V2 3.7-22 kW Socket T2 On-Line is a versatile EV charger tailored for residential and semi-public use, with scenarios ranging from private homes to small commercial facilities. Its adjustable power, universal compatibility, and durable design make it adaptable to diverse user needs and environmental conditions.
Private Residential Homes and Villas
Private residential homes and villas are the primary application scenario for the EATON XCI3278221-00000 GMH V2, as it caters to EV-owning households seeking convenient, overnight charging. For single-family homes with single-phase 230V electrical systems, the charger’s 3.7 kW setting is ideal: a user can plug in their EV (e.g., a Nissan Leaf with a 40 kWh battery) at 9 PM, and the charger will fully replenish the battery by 7 AM the next day—aligning with typical sleep schedules. The IP54 rating allows installation in garages (indoor) or driveways (outdoor), while the compact design ensures it does not occupy excessive space. For villas with three-phase 400V grids, the 22 kW fast-charging mode is a game-changer: a family with two EVs (e.g., a Tesla Model 3 and a Hyundai Ioniq 5) can charge both vehicles quickly—one using the 22 kW mode for a 2-hour top-up before a weekend trip, and the other using the 3.7 kW mode overnight. The dedicated mobile app also benefits households by enabling energy monitoring: parents can track how much electricity their teenage driver uses for EV charging, or the family can optimize charging to use solar power generated by their home’s PV system.
Small Commercial Offices and Coworking Spaces
Small commercial offices (10-50 employees) and coworking spaces benefit greatly from the EATON XCI3278221-00000 GMH V2, as it serves as a value-added amenity for EV-driving staff. The charger’s T2 socket compatibility ensures it works with all employees’ EVs, eliminating the frustration of incompatible connectors. The 3.7 kW setting is suitable for employees who park their vehicles for 8+ hours during the workday: an employee can plug in their EV at 8 AM and have a full battery by 5 PM, ready for their commute home. For employees with urgent charging needs (e.g., a last-minute client meeting), the 22 kW mode adds 80 km of range in just one hour. The app’s access control feature is critical here: office managers can issue RFID cards to authorized employees, preventing unauthorized use by visitors or nearby residents. Additionally, the built-in energy meter allows the office to track charging costs, which can be reimbursed to employees or included as a perk. The charger’s compact design and IP54 rating make it suitable for installation in small office parking lots or covered garages, even in urban areas with limited space.
Residential Complexes and Gated Communities
Residential complexes and gated communities with dedicated parking for residents can leverage the EATON XCI3278221-00000 GMH V2 to offer shared EV charging services. The charger’s adjustable power range adapts to the complex’s electrical infrastructure: if the complex has single-phase grids, the 3.7 kW mode supports overnight charging for multiple residents (rotated via a scheduling system), while three-phase grids enable faster 22 kW charging for peak-demand periods. The T2 socket design allows residents to use their own cables, reducing the complex’s upfront costs (no need to purchase multiple fixed cables). The app’s access control feature ensures only residents with valid subscriptions can use the charger, and the energy meter enables the complex to bill residents for electricity usage (e.g., per kWh or monthly subscription). The IP54 rating makes the charger suitable for outdoor installation in the complex’s parking lot, and the IK08 impact resistance withstands heavy foot traffic and accidental bumps from strollers or shopping carts. For complexes aiming to attract eco-conscious residents, the charger is a key selling point that differentiates the property from competitors.
Small Hotels and Bed-and-Breakfasts (B&Bs)
Small hotels and B&Bs (5-20 rooms) can use the EATON XCI3278221-00000 GMH V2 to enhance guest experience and cater to EV-driving travelers. The charger’s T2 socket compatibility ensures it works with guests’ EVs, regardless of brand—from luxury models (e.g., Mercedes-Benz EQS) to budget-friendly options (e.g., Renault Zoe). The 22 kW fast-charging mode is ideal for guests staying 1-2 nights: a guest can arrive at the hotel at 3 PM, plug in their EV, and have a full battery by 5 PM—enough for a local sightseeing trip. The 3.7 kW mode suits guests staying overnight, as it charges the EV while they sleep without overloading the hotel’s electrical system. The app’s remote control feature allows hotel staff to start/stop charging for guests, adding a personalized touch (e.g., pre-charging a guest’s EV before their arrival). The charger’s compact design and IP54 rating enable installation in the hotel’s parking lot or near the entrance, making it easily accessible for guests. For B&Bs with limited parking space, the floor-mount option saves space while still providing a valuable amenity.
Home-Based Businesses and Small Workshops
Home-based businesses (e.g., freelance designers, small-scale craftsmen) and small workshops (e.g., auto repair shops, woodworking studios) can integrate the EATON XCI3278221-00000 GMH V2 to support both personal and business EV use. For a home-based freelancer who uses an EV for daily commutes and occasional client meetings, the 3.7 kW mode provides overnight charging, while the 22 kW mode offers quick top-ups before busy days. For a small auto repair shop that services EVs, the charger can be used to test-charge customer vehicles after maintenance—with the T2 socket compatibility ensuring it works with all makes and models. The app’s energy monitoring feature helps the business track charging costs, which can be billed to customers or deducted as a business expense. The charger’s IP54 rating and IK08 impact resistance withstand the dusty, high-traffic environment of a workshop, and the compact design fits in small utility rooms or near the shop entrance.
Retirement Communities and Senior Living Facilities
Retirement communities and senior living facilities can install the EATON XCI3278221-00000 GMH V2 to meet the needs of elderly residents with EVs. The charger’s user-friendly design—including a bright LED indicator for charging status (e.g., green for charging, red for error) and a simple plug-in process—makes it easy for seniors to use, even with limited technical expertise. The 3.7 kW overnight charging mode aligns with seniors’ routines (e.g., plugging in the EV after returning from a morning errand, charging while they sleep), and the safety features (ground fault detection, thermal shutdown) provide peace of mind for both residents and facility managers. The app’s remote monitoring feature allows facility staff to check charging status and assist residents if issues arise (e.g., a fault alert), reducing the need for seniors to troubleshoot on their own. The IP54 rating enables outdoor installation near the facility’s entrance or parking lot, making it easily accessible for residents with mobility aids (e.g., walkers, wheelchairs).
