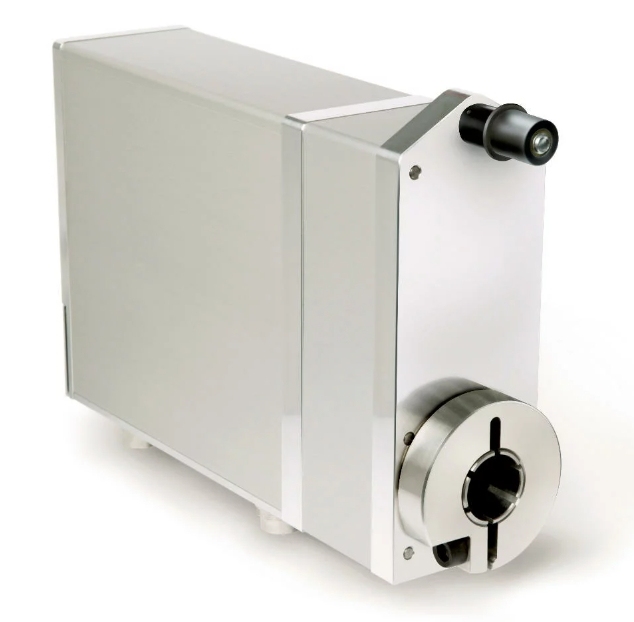

SIKO AG04B-70,8-160W/MB-IP54-KR/14-B-EX-254-PB-SW (AG04B-0020)

SKU:
0.0 (0)
$3,000.00 $0.00
  • Easy mounting
  • Stainless steel hollow shaft up to max. ø20 mm
  • """manual"" traveling without control unit by means of operator keys"
  • Brushless 160 W, 24 V DC motor with long service life
  • Integrated absolute position encoder on the output shaft
  • Electrical connection via spring terminals or connector
  • Integrated positioning controller
  • Integrated fieldbus interface
  • Integrated spring-operated brake (option)
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO AG04B-70,8-160W/MB-IP54-KR/14-B-EX-254-PB-SW (AG04B-0020)
  • Description
Feature Technical Specifications Enhancement
shaft  rustproof stainless steel
Housing  aluminum
Nominal torque/rated speed  6  Nm  at 150 min-1 (±10%) i = 30.6 (max. adm. operating point)
10  Nm  at 90 min-1 (±10%) i = 50 (max. adm. operating point)
14  Nm  at 64 min-1 (±10%) i = 70.8 (max. adm. operating point)
Operating mode  S3 intermittent operation: 25 % DC, 10 min. EN 60034-1
Weight ~3.2  kg
