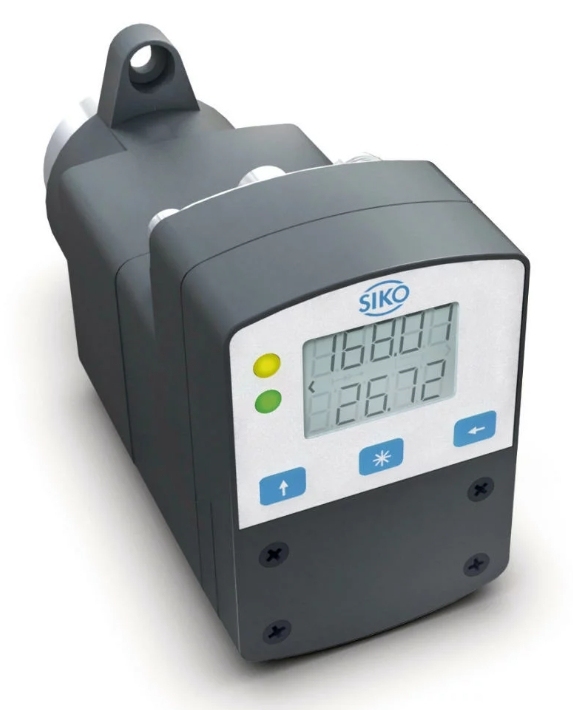

SIKO AG05-66-50W-IP54-KR/14-A-ABM-CAN-SW

SKU:
0.0 (0)
$1,335.43 $0.00
  • easy mounting, no additional coupling needed
  • stainless steel 14 mm hollow shaft, glass fibre reinforced casing
  • brushless 24 VDC motor with long service life
  • solid absolute sensor, magnetic sensing technology
  • 2-line LCD for target and position value and operating keys
  • 2 LEDs for user guidance
  • integrated RS485 or CANopen interface
  • Integrated positioning controller
  • M8 + M12 component mounting technology
  • Industry 4.0 ready
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO AG05-66-50W-IP54-KR/14-A-ABM-CAN-SW
  • Description
Feature Technical Specifications Enhancement
shaft  rustproof stainless steel
Housing  glass-fiber reinforced plastic
clamping ring  rustproof stainless steel
Torque pin  rustproof stainless steel form A
rustproof stainless steel form B
Nominal torque/rated speed  3  Nm  at 75 min-1 ±10% i = 66
5  Nm  at 50 min-1 ±10% i = 98
Operating mode  S3 intermittent operation: 25 % DC, 10 min. EN 60034-1
Weight ~0.45  kg
