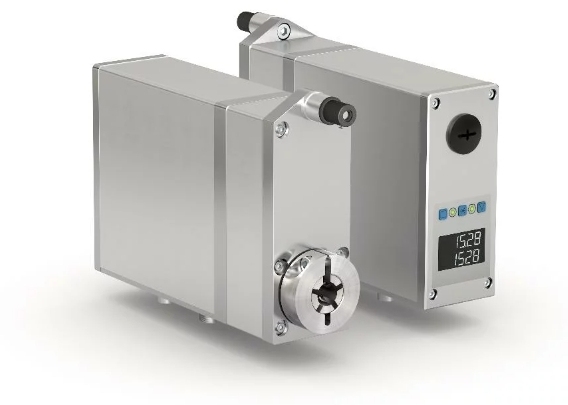

SIKO AG24-30.6-160W/OB-IP65-KR/20-EIP-S AG24-0017

Name: SIKO AG24-30.6-160W/OB-IP65-KR/20-EIP-S AG24-0017
Brand: Wheat Automation
SKU: AG24-30.6-160W/OB-IP65-KR/20-EIP-S AG24-0017
Price: 4080 USD
Availability: InStock

0.0 (0)

$4,080.00

With a maximum nominal torque of 14 Nm, the new AG24 is a real power pack for format adjustment

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Feature	Technical Specifications	Enhancement
shaft	rustproof stainless steel
Housing	anodized aluminum
clamping ring	rustproof stainless steel
Nominal torque/rated speed	6 Nm at 150 min-1 (±10%)	i = 30.6
	10 Nm at 90 min-1 (±10%)	i = 50
	14 Nm at 64 min-1 (±10%)	i = 70.8
Operating mode	S3 intermittent operation: 25 % DC, 10 min.	EN 60034-1
Brake momentum	brake-induced stop momentum corresponds at least to the nominal torques of the individual transmissions, at ambient temperature 20 ° C
Weight	~3.2 kg
