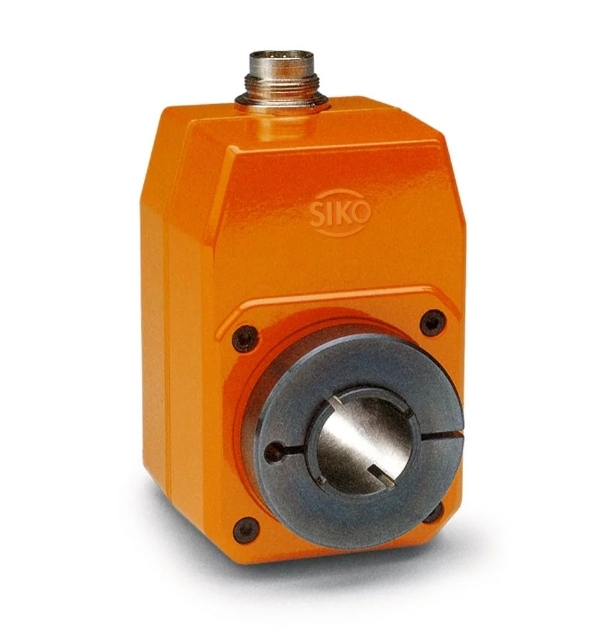

SIKO IG07-ABO-600-E4-OK-1-ON-W05-RS-SV-SG

SKU:
0.0 (0)
$1,002.14 $0.00
The IG07 is a robust incremental encoder with through hollow shaft, which is nearly indestructible even under the harshest ambient conditions.
  • Resolutions of max. 1024 pulses/revolution
  • Through hollow shafts up to ø20 mm
  • Housing made of zinc die-cast
  • High shaft load rating, radial 5600 N, axial 1400 N
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO  IG07-ABO-600-E4-OK-1-ON-W05-RS-SV-SG
  • Description
Feature Technical Specifications Enhancement
shaft  black-finished steel
Housing  zinc, die-cast
Speed ≤6000  min-1 IP64
≤3000  min-1 IP65
Moment of inertia ~28.5 x 10-6 kgm2 W01 shaft design
~58.5 x 10-6 kgm2 W02 shaft design
Starting torque ≤6  Ncm  at 20 °C IP64
≤10  Ncm  at 20 °C IP65
Shaft load rating  1400  N  axial
5600  N  radial
Cable sheath  PVC
Weight ~0.75  kg
