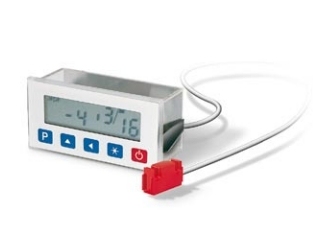

SIKO MA503/1-0098

SKU:
0.0 (0)
$1,185.57 $0.00
■ Display accuracy max. 10 µm or 1/64 inch
■ Repeat accuracy max. ±0.01 mm
■ Low-power LCD with decimal and fraction-inch function
■ Max. sensor/band reading distance 2 mm
■ Incremental measurement and reset function
■ Direct reference/offset value input
■ Battery-buffered memory
■ Battery operation
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO MA503/1-0098
  • Description
Feature Technical data Additional information
System accuracy  ±(0.1+ 0.01 x L) mm, L in mm
Repeat accuracy max. ±0.01 mm  ± 1 digit
Magnetic sensor  hard-wired
Supply connection  strand led to the outside integrated battery compartment with external battery holder
Display/display range  low-power LCD, approx. 12.5 mm high  decimal up to 10 µm, fraction-inch up to 1/64 Inch
Design  rectangle with elongated hole round design
Housing  panel-mount housing, approx. 40 mm deep, installation kit
Protection category  IP40 whole device,
IP54 front side,
IP67 sensor
Operating temperature  0 … +60 °C
Storage temperature  -30 …+80 °C
Humidity  condensation inadmissible
Travel speed  max. 5 m/s
