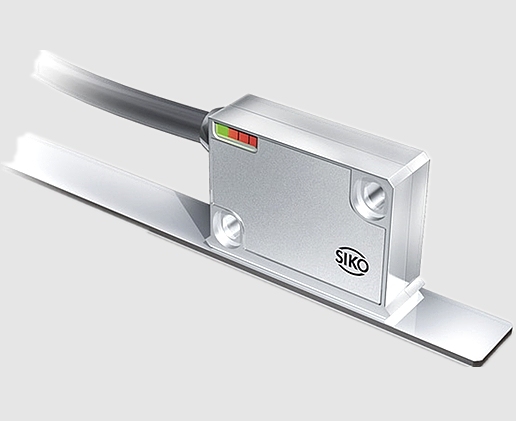

SIKO MB100-30-10-0.05-ST-TM-AM-E-0/LE100/1

Name: SIKO MB100-30-10-0.05-ST-TM-AM-E-0/LE100/1
Brand: Wheat Automation
SKU: MB100-30-10-0.05-ST-TM-AM-E-0/LE100/1
Price: 5000 USD
Availability: InStock

0.0 (0)

$5,000.00

Accuracy level ± 0.1 °

Repetitive accuracy MAX ±1μm

LED status display

Suitable for MB100/1 magnetic tape

Suitable for MBR100 magnetic tape loop

Reading distance ≤ 0.4mm

Signal period 1000 μ m

Output circuit sin/cos 1 VSS

Sturdy metal casing

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Operating voltage: 10.5... 30VDC, 5VDC ± 5%

Current consumption:<25mA (at 24VDC)

<50mA (at 5VDC)

sin，/sin，cos，/cos，index，/index

Output voltage: 1VPP ± 10%

Output impedance: 0 Ω (RLoad>75 Ω)

Signal cycle: 1000 μ m

Bias voltage: 2.5 V, ± 100 Mv (sine/cosine represents GND (10.5... 30 V DC))

UB/2 ± 100 mV (sine/cosine represents GND (5 V DC))

Real time requirement: Speed proportional signal output

Shell: Zinc Die Casting/Aluminum (M Design)

Zinc Die Casting (ZM Design)

Cable sheath: PUR, suitable for use with drag chains, 6-8 wires? 5-0.4mm

Cable bending radius: 5x cable diameter, static

7.5x cable diameter, dynamic

Environmental temperature: -10... 70 ° C

Storage temperature: -30... 80 ° C

Relative humidity: 100%

Protection level: IP67
