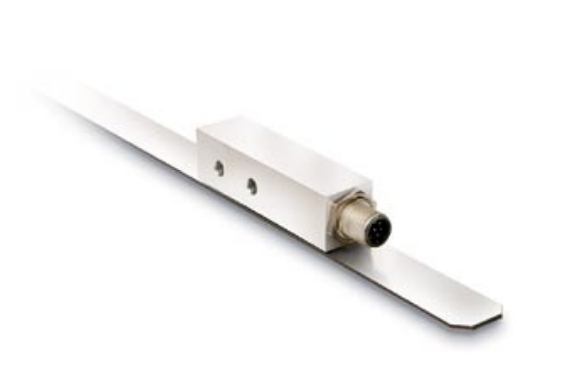

SIKO MSA510/1-0027 SSI-E1-12 + KV08S2-0005+MBA-0098

SKU:
0.0 (0)
$2,875.86 $0.00
■ Max. resolution of 10 µm
■ Repeat accuracy of 0.01 mm
■ SSI, RS485 output circuits
■ Max. sensor/band reading distance 1 mm
■ Max. measuring length 5120 mm
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO MSA510/1-0027 SSI-E1-12 + KV08S2-0005+MBA-0098
  • Description
Feature Technical data Additional information
Scale embodiment  MBA
System accuracy   ±(0.05 + 0.03 x L) mm, L in m at TU = 20 °C
Repeat accuracy max. 0.01 mm
Sensor/band reading distance max. 1 mm
Travel speed max. 5 m/s
Housing aluminum
Sensor cable PVC option: drag chain-compatible cable
Operating temperature -20 … +60 °C
Storage temperature -30 … +85 °C
Humidity 100 % rh condensation permitted
Protection category IP65
Vibration resistance 10 g/50 Hz
Max. measuring length max. 5120 mm
