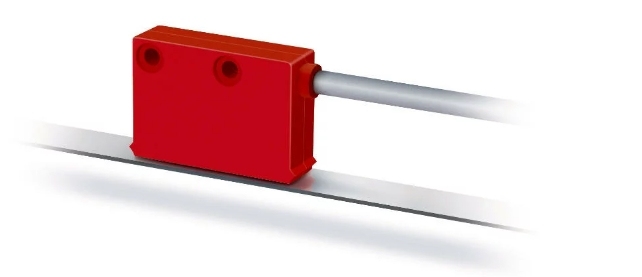

SIKO MSK320-4-F-E1-2,0-PP-NI-O-0,1

0.0 (0)

$671.43

Max. resolution 12.5 μm
max. resolution 0.006° with MR320 or MBR320 (250 poles)
Repeat accuracy ±0.04 mm
Repeat accuracy ±1 increment
Works with MB320/1 magnetic tape, MRI01 or MR320 magnetic ring, MBR320 magnetic tape ring
Reading distance ≤2 mm
Max. 16000 pulses/revolution in combination with MR320 or MBR320 (250 poles)
optionally with reference point R or flexible reference marks FR

Received successfully

Coupon Code

Description

Feature	Technical Specifications	Enhancement
Sensor/band reading distance	0.1 … 2 mm	O, I reference signals
	0.1 … 1.5 mm	R reference signal
	0.4 … 1 mm	FR reference signal
Sensor/ring reading distance	0.1 … 2 mm	O, I reference signals
Sensor/ring reading distance	0.1 … 1 mm	R reference signal
Cable sheath	PUR, suitable for drag-chain use	4-core ø 4.4-0.4 mm; 5, 6, 8-core ø 5-0.4 mm
Cable bending radius	5x cable diameter	static
Cable bending radius	7.5x cable diameter	dynamic
Service life of cable	>5 Million cycles	Under the following test conditions:
Housing	red plastic	A design
	steel	F design
	zinc die-cast	ZM design
