Your position: Home > Siko > SIKO SG61-0029 IV5800-0062

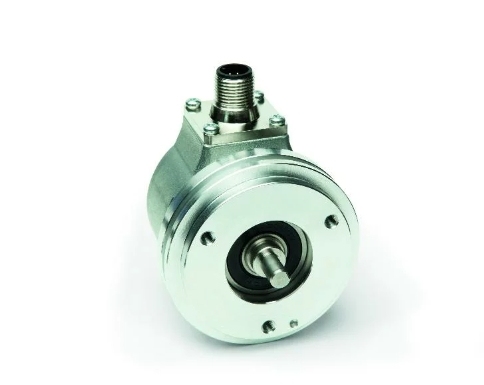

SIKO SG61-0029 IV5800-0062

SKU:
0.0 (0)
$1,201.71 $0.00
  • Resolution max. 5000 pulses/revolution
  • IP65 or IP66/IP67 protection class
  • Robust bearing construction
  • -40 … 85° C operating temperature
  • High shock and vibration resistance
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO SG61-0029  IV5800-0062
  • Description
Feature Technical Specifications Enhancement
shaft  rustproof stainless steel
Housing  die-cast
Speed ≤12000  min-1 IP65
≤6000  min-1 IP65 continuous operation
≤6000  min-1 IP66/IP67
≤3000  min-1 IP66/IP67 continuous operation
Moment of inertia ~1.8 x 10-6 kgm2
Starting torque <0.01  Nm  at 20 °C IP65
<0.05  Nm  at 20 °C IP66/IP67
Shaft load rating  100  N radial
 50  N axial
Cable sheath  PVC ~Ø 6.7 mm
Cable bending radius  75  mm static
110  mm dynamic
Weight ~0.4  kg
