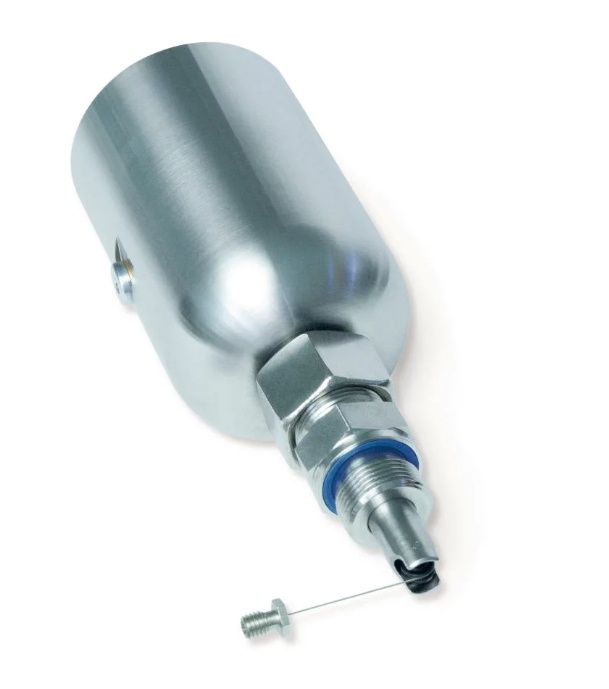

SIKO SGH10-0002 1000-GW6-4/20M-M1-DS-SW

SKU:
0.0 (0)
$590.57 $0.00
  • Measuring range 0 … 1000 mm (39.37 inches)
  • almost no stoke lost thanks to lateral mounting
  • Absolute measuring system
  • CANopen interface, analog: Current and voltage
  • Operating voltage 9 ... 32 VDC
  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
  • High flexibility, thanks to teach-in to any measuring length
  • High EMC compatibility
  • High shock and vibration resistance
  • with PURE.MOBILE technology
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • SIKO SGH10-0002  1000-GW6-4/20M-M1-DS-SW
  • Description
Feature Technical Specifications Enhancement
Housing  rustproof stainless steel V4A housing, 1.4404 uncoated
steel St housing, 1.7225 not coated
Seal  HNBR sensor
Viton Screw-in connector housing V4A
NBR Screw-in connector housing St
Wire design ø0.45  mm rustproof stainless steel
Extension force ≥2  N
Acceleration ≤10  m/s²
Weight ~2.1  kg V4A housing without spacer tube
~2  kg St housing without spacer tube
